Kubernetes部署Kibana 8.17.4

编写Deployment Yaml

vim kibana-deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: kibana
  namespace: elk
spec:
  replicas: 1
  selector:
    matchLabels:
      app: kibana
  template:
    metadata:
      labels:
        app: kibana
    spec:
      containers:
      - name: kibana
        image: docker.elastic.co/kibana/kibana:8.17.4
        ports:
        - containerPort: 5601
        env:
        - name: TZ
          value: "Asia/Shanghai"
        volumeMounts:
        - name: kibana-config
          mountPath: /usr/share/kibana/config/kibana.yml
          subPath: kibana.yml
        readinessProbe:
          httpGet:
            path: /api/status
            port: 5601
          initialDelaySeconds: 10
          periodSeconds: 5
      volumes:
      - name: kibana-config
        configMap:
          name: kibana-config

编写kibana cm

vim kibana.yml

#
# ** THIS IS AN AUTO-GENERATED FILE **
#
#
# Default Kibana configuration for docker target
server.name: kibana
server.host: "0.0.0.0"
i18n.locale: "zh-CN"
elasticsearch.hosts: ["http://192.168.xx.xx:9200"]
elasticsearch.username: "USER"
elasticsearch.password: "PWD"

提示

这里用户不能用elastic，推荐kibana_system；如果es是集群的话hosts配置可以这样写：["http://192.168.xx.xx:9200","http://192.168.xx.xx:9200","http://192.168.xx.xx:9200"]

编写kibana svc

vim kibana-svc.yaml

apiVersion: v1
kind: Service
metadata:
  namespace: elk
  name: kibana
spec:
  type: NodePort
  selector:
    app: kibana
  ports:
  - name: kibana
    port: 5601
    targetPort: 5601
    protocol: TCP
    nodePort: 5601

apply kibana

kubectl create namespace elk
kubectl apply -f kibana-deployment.yaml
kubectl create cm -n elk kibana-config --from-file=kibana.yml
kubectl apply -f kibana-svc.yaml

配置告警

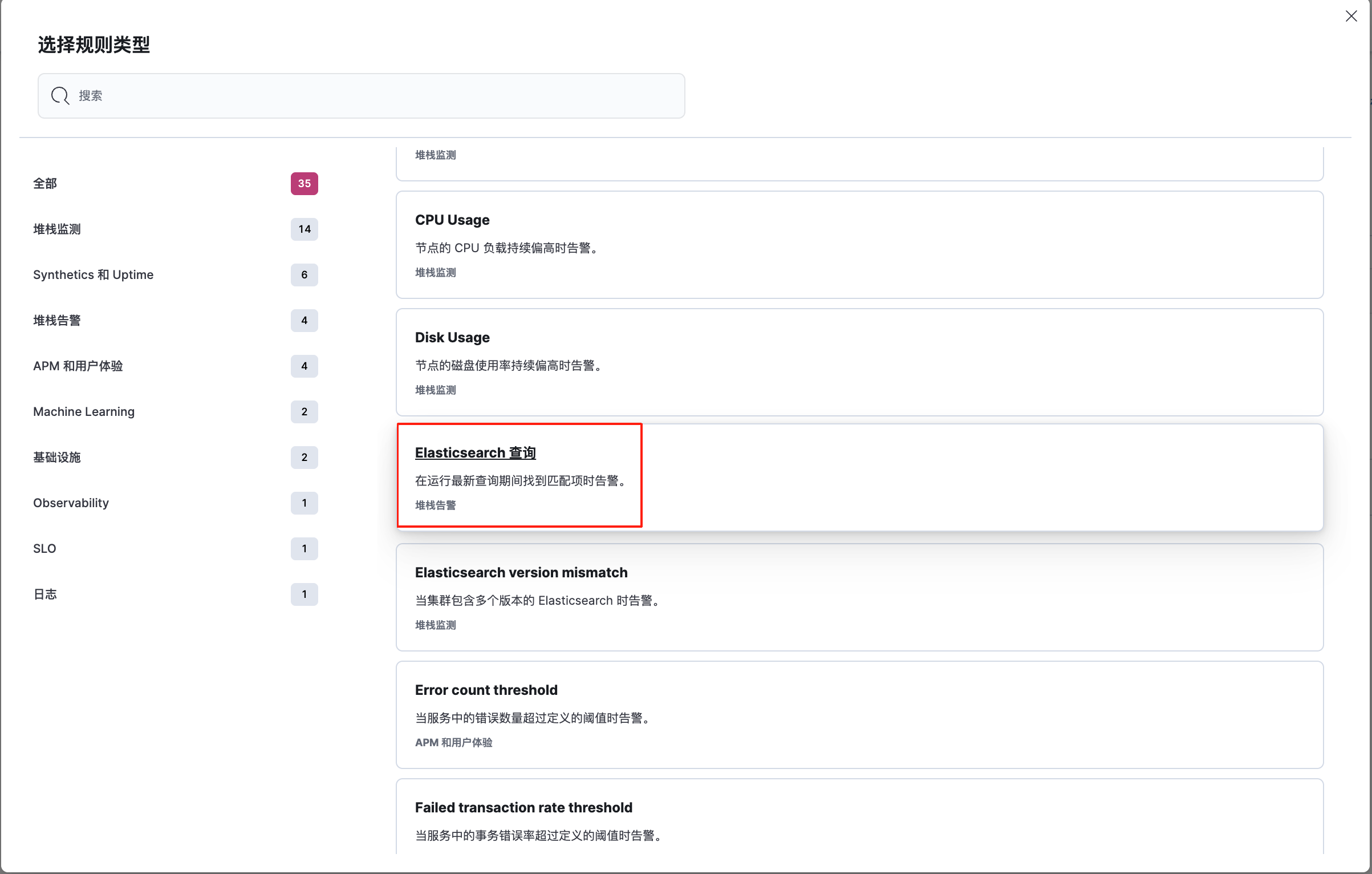

1. Kibana页面：Observability -> 告警 -> 规则 -> 创建规则

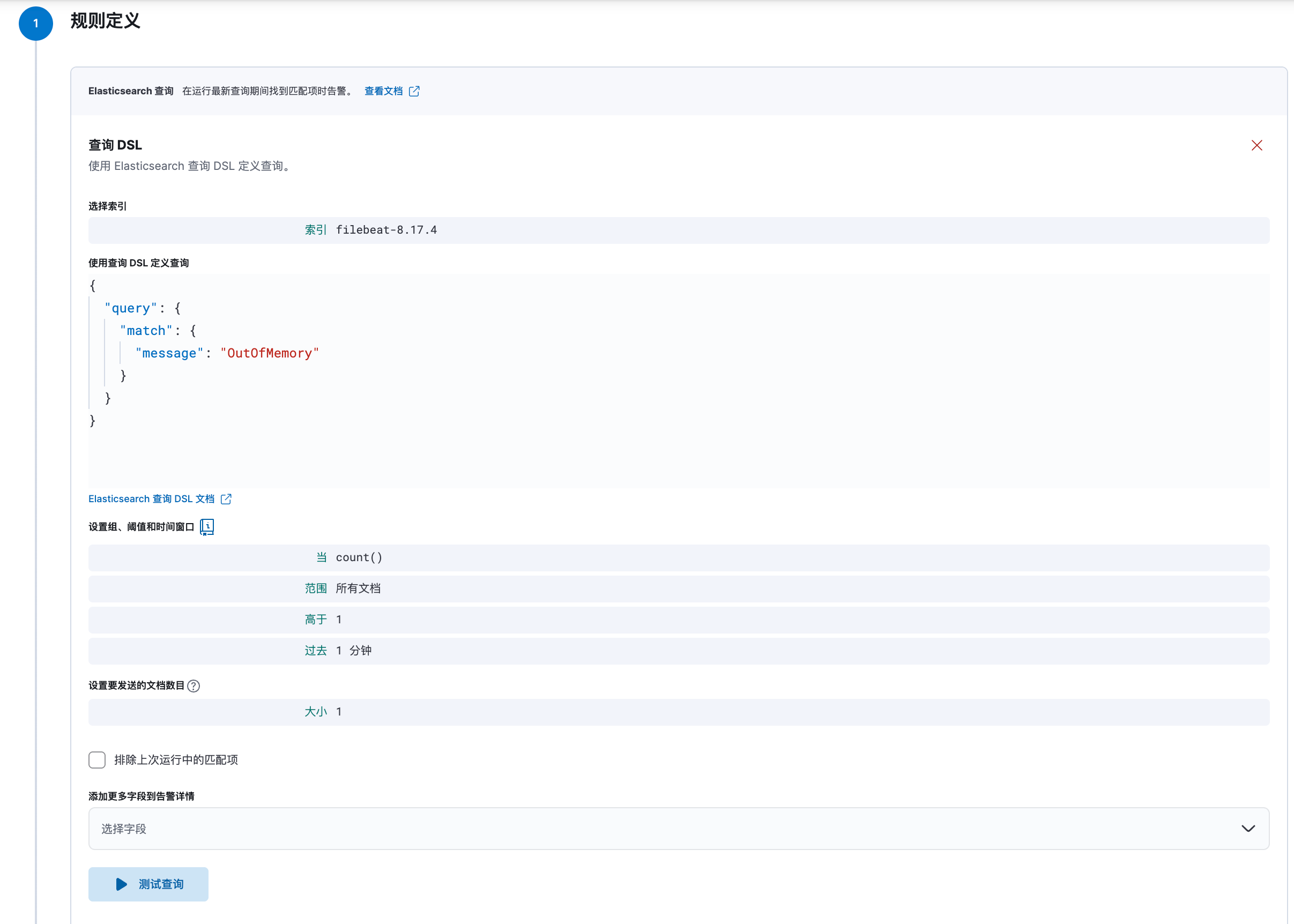

2. 定义告警指标

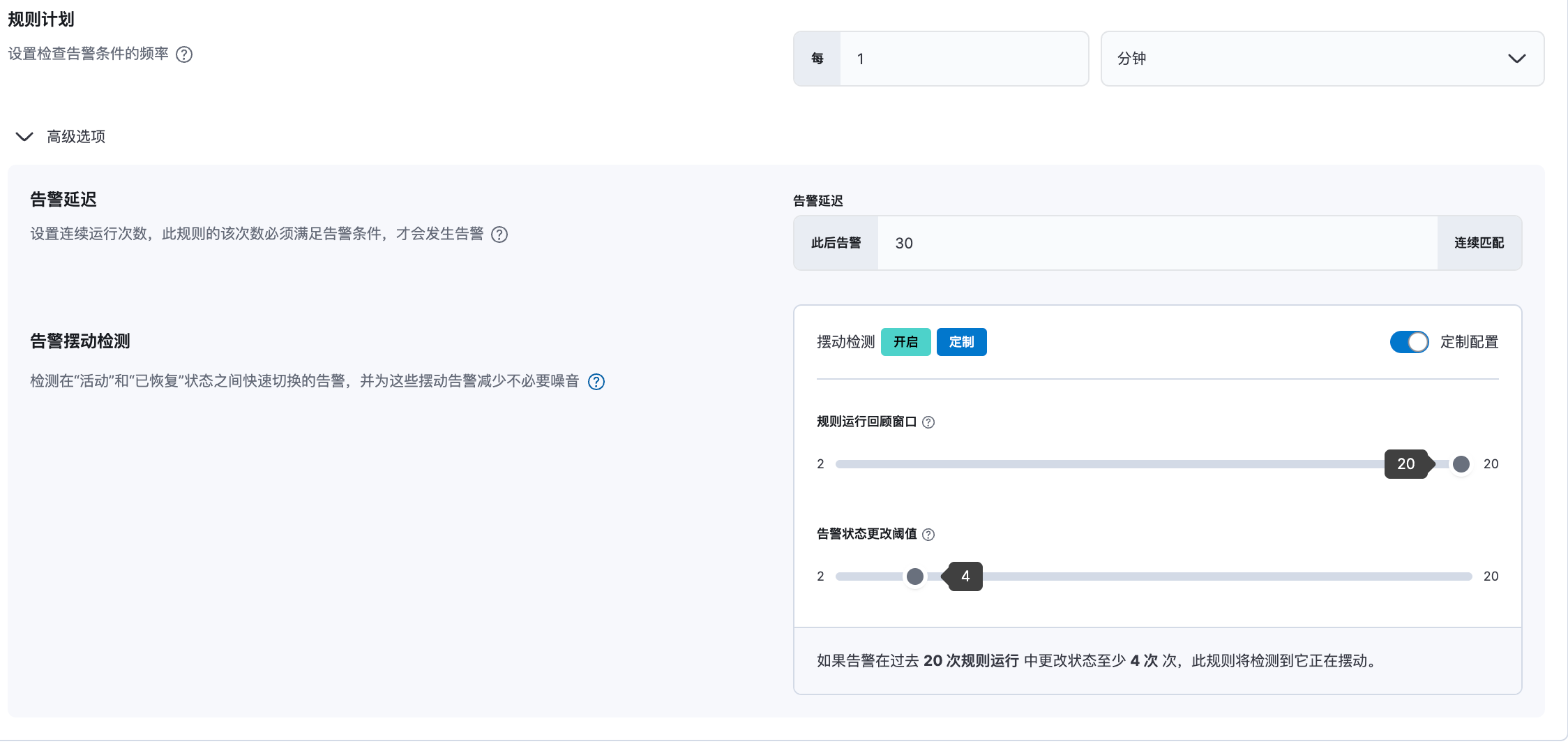

3. 定义告警频率

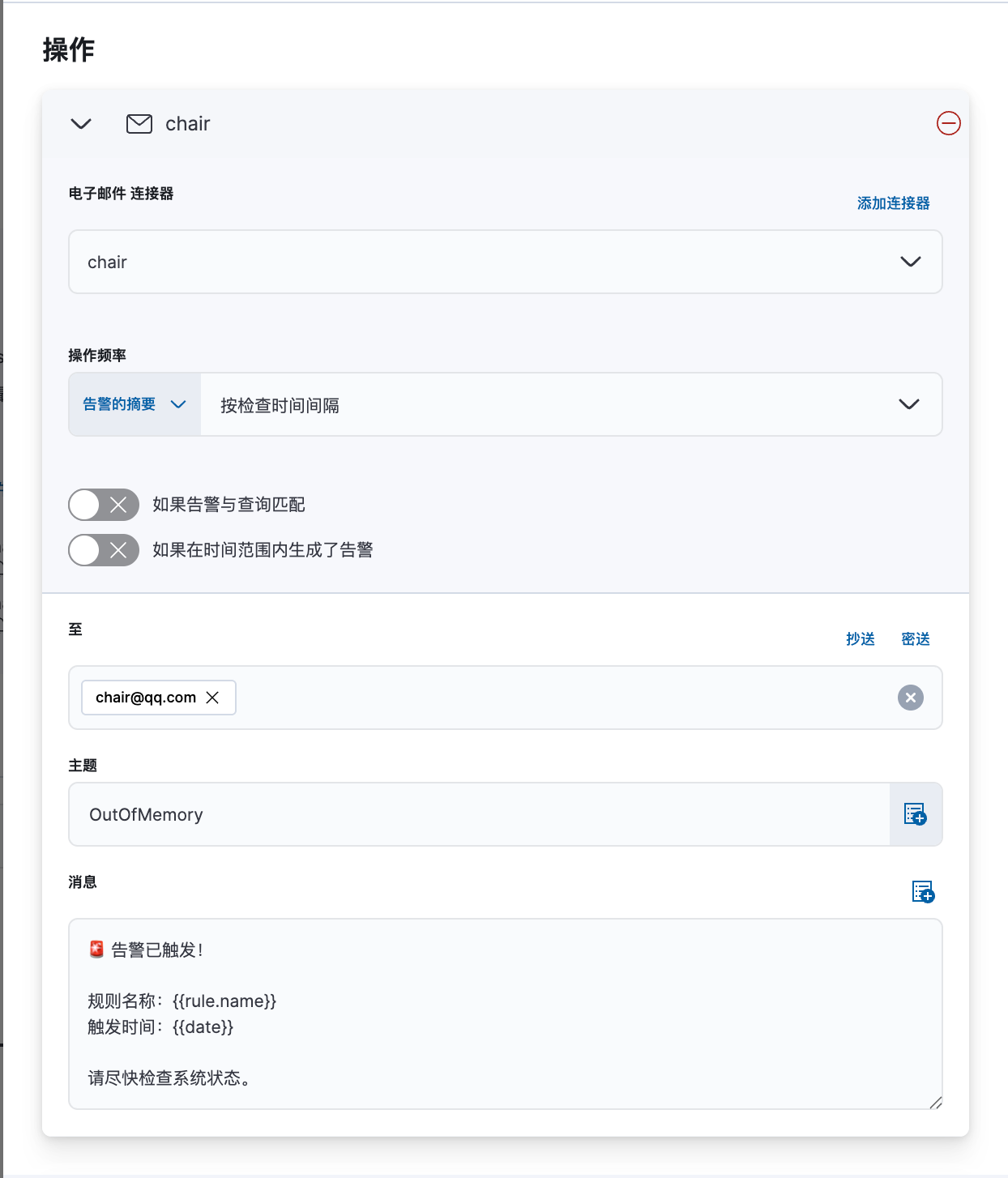

4. 定义告警邮件通知

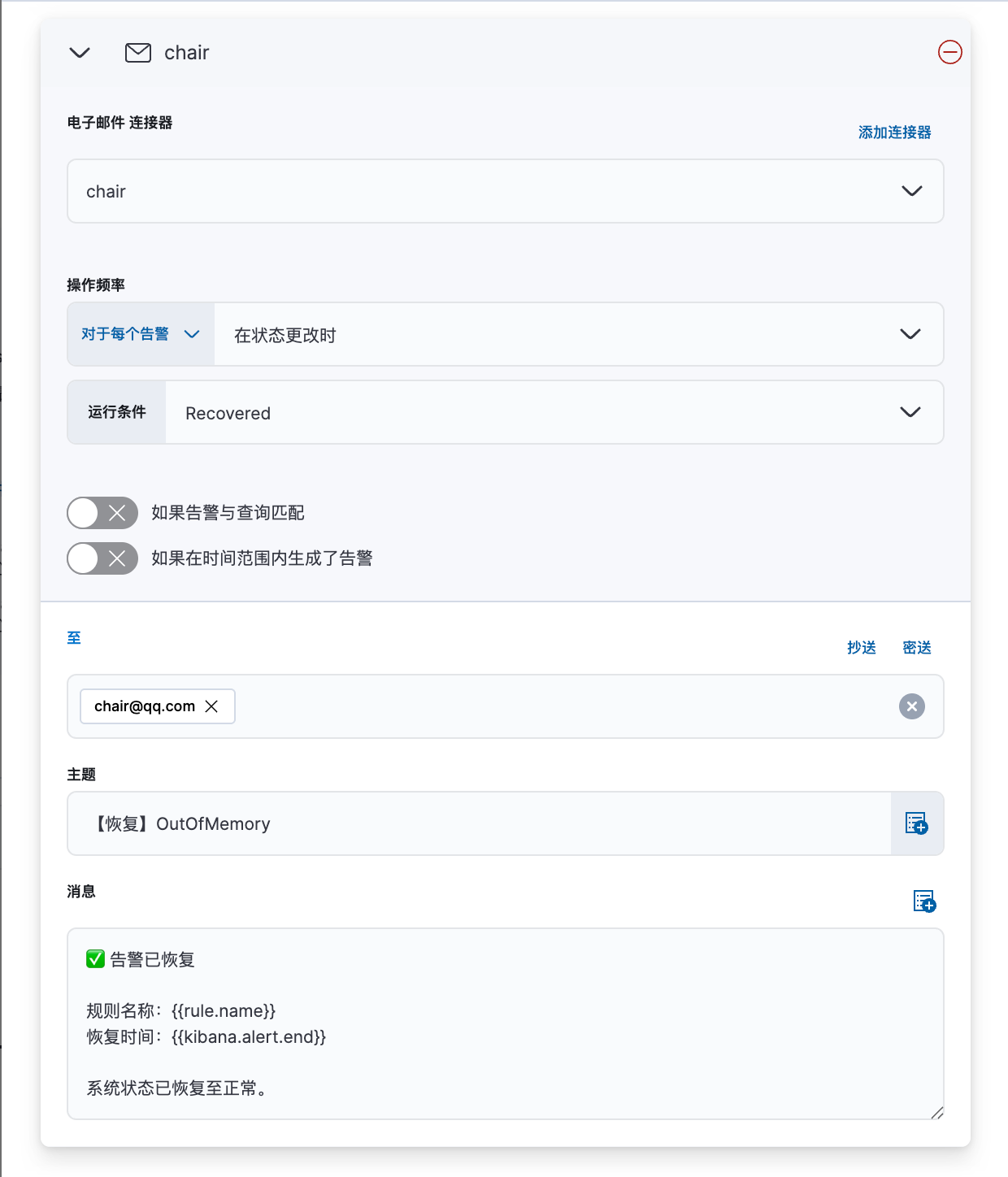

5. 定义恢复通知

Kibana常用控制台指令

获取所有索引

GET /_cat/indices?v

创建索引

PUT /test_index
